Product Overview
Expopartsplus’ Premium Quality Air Spring is Designed To Maintain Vehicle Height Consistently. Manufactured To Meet Oem Standards, it Minimizes Vibrations And Load Fluctuations. Engineered To Provide A Comfortable Ride For Both Driver And Cargo, These Long-lasting Air Springs Ensure A Quiet And Balanced Driving Experience. We’re Committed To Keeping Trucks On The Road!
Specific Features
Expopartsplus Offers High-quality Raw Materials And Expert Manufacturing For Superior Performance.
Its Plastic Base Reduces Weight While Providing Cost Savings.
Designed With Oem-standard Dimensions, it Ensures Easy installation.
It is Highly Resistant To Oil, Lubricants, And Adverse Weather Conditions.
Engineered To Be Long-lasting And Environmentally Friendly.
Where Used
Volvo/white

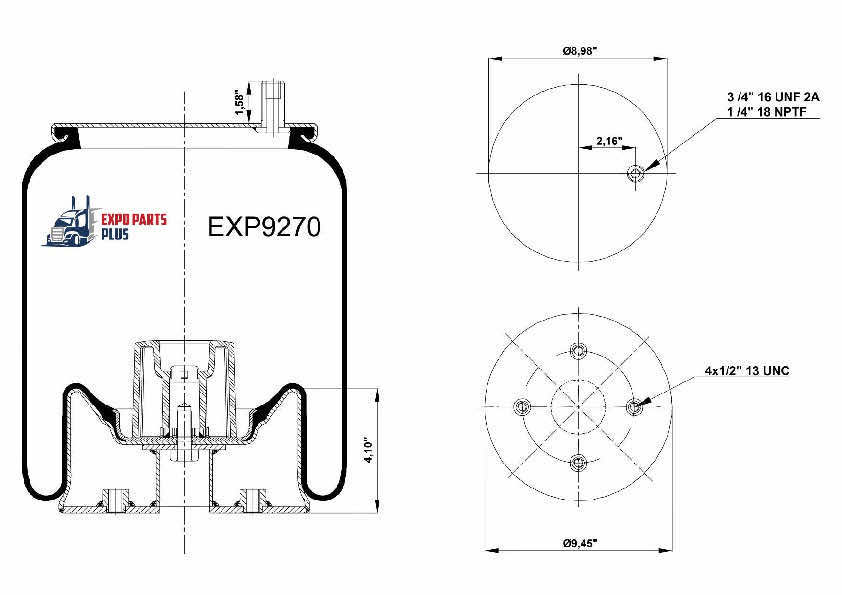

| Specifications |
| Attribute |
Value |
| Applications |
Hendrickson Trailer |
| Type |
Rolling Lobe |
| Brand |
Expopartsplus |
| Firestone Bellows# |
1t15vm-4.0, 1t15vp-4.0 |
| Goodyear Bellows# |
566-26-3-053, 566-26-3-036 |
| Contitech Bellows# |
9 10-13.5 |
| Triangle Bellows# |
6385 |
| Design Height (In) |
9.00 |
| Bottom Plate Type |
Steel |
| Top Plate Hole/stud Qty |
1 |
| Top Plate Dia. (a) |
9.00 |
| Top Plate C To C Dia. (b) |
N/a |
| Bottom Plate Hole/stud Qty |
4 |
| Bottom Plate Dia. (c) |
9.49 |
| Bottom Plate C To C Dia. (d) |
5.67" |
| Bottom Part # |
Bs09758 |
| Bumper |
Yes |
| Bracket |
N/a |
| Min. Height |
5.40 |
| Max. Height |
16.80 |
| Max. Dia. |
12.60 |
| Serial Brand |
Serial No |
| No |
Series |
| Cross No |
Cross Brand |
| AS0084 |
Watson&Chalin |
| 85101147 |
Volvo/White |
| 3946473 |
Volvo/White |
| G2299270300 |
Neway |
| 1003589270C |
Ridewell |
| S20010 |
Hendrickson |
| C25559 |
Hendrickson |
| C20010 |
Hendrickson |
| S25559 |
Hendrickson |
| 1R13119 |
Goodyear |
| 1R13102 |
Goodyear |
| 1R13077 |
Goodyear |
| W01-358-9270 |
Firestone |
| 64287 |
Contitech |
| 161034 |
Contitech |
| M-3542 |
BWP |
