Product Overview
Expopartsplus’ Premium Quality Air Spring is Designed To Maintain Vehicle Height Consistently. Manufactured To Meet Oem Standards, it Minimizes Vibrations And Load Fluctuations. Engineered To Provide A Comfortable Ride For Both Driver And Cargo, These Long-lasting Air Springs Ensure A Quiet And Balanced Driving Experience. We’re Committed To Keeping Trucks On The Road!
Specific Features
Expopartsplus Offers High-quality Raw Materials And Expert Manufacturing For Superior Performance.
Its Plastic Base Reduces Weight While Providing Cost Savings.
Designed With Oem-standard Dimensions, it Ensures Easy installation.
It is Highly Resistant To Oil, Lubricants, And Adverse Weather Conditions.
Engineered To Be Long-lasting And Environmentally Friendly.
Where Used
Kenworth / Peterbilt

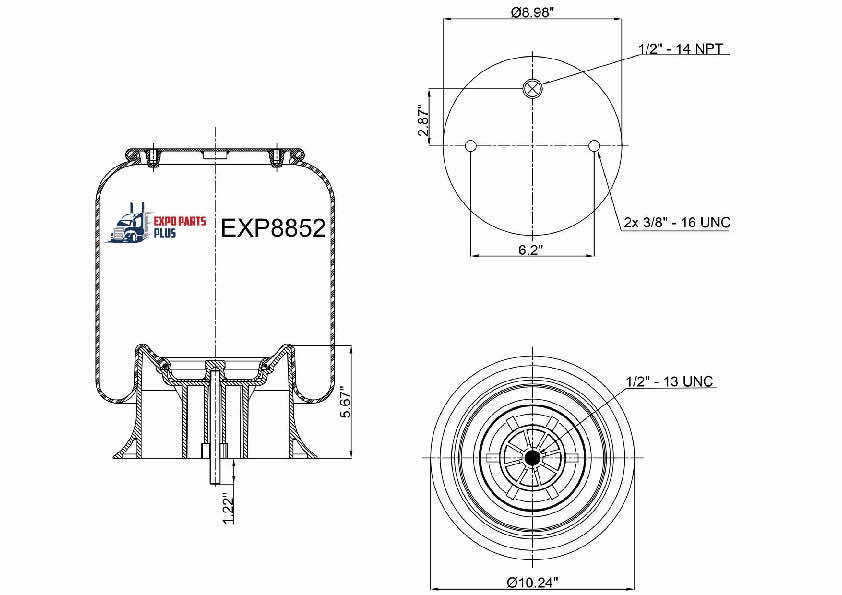

| Specifications |
| Attribute |
Value |
| Applications |
Peterbilt |
| Type |
Rolling Lobe |
| Brand |
Expopartsplus |
| Firestone Bellows# |
1t15m-9 |
| Goodyear Bellows# |
566-24-3-066 |
| Contitech Bellows# |
9 10-19 |
| Load (lbs) @80 PsI |
5700 |
| Load (lbs) @100 PsI |
7200 |
| Natural Freq. (cpm) |
60 |
| Design Height (In) |
15.00 |
| Bottom Plate Type |
Plastic |
| Top Plate Hole/stud Qty |
3 |
| Top Plate Dia. (a) |
9.00 |
| Top Plate C To C Dia. (b) |
6.20 |
| Bottom Plate Hole/stud Qty |
1 |
| Bottom Plate Dia. (c) |
10.28 |
| Bottom Plate C To C Dia. (d) |
N/a |
| Bottom Part # |
Bs14552 |
| Bottom Plate Alignment |
Parallel |
| Bumper |
No |
| Bracket |
N/a |
| Min. Height |
6.70 |
| Max. Height |
24.60 |
| Max. Dia. |
12.60 |
| Serial Brand |
Serial No |
| Peterbilt 379 |
(no Year) |
| Cross No |
Cross Brand |
| 0307887 |
Peterbilt |
| 1R12-1058 |
IHC |
| 1R12568 |
Goodyear |
| W017038851 |
Firestone |
| W017038854 |
Firestone |
| W01-358-8852 |
Firestone |
| 64339 |
Contitech |
| AS8852 |
Contitech |
