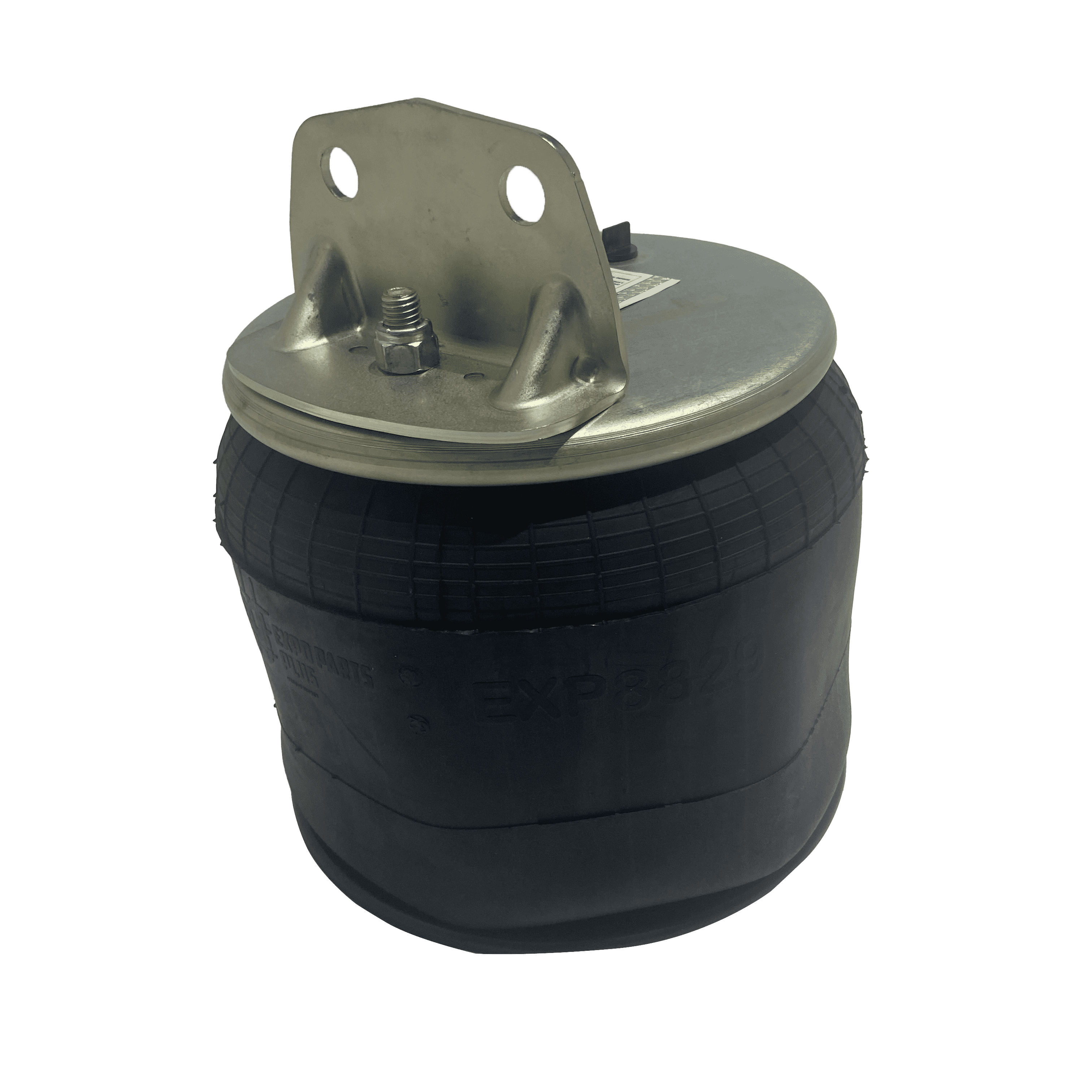

Product Overview
Expopartsplus’ Premium Quality Air Spring is Designed To Maintain Vehicle Height Consistently. Manufactured To Meet Oem Standards, it Minimizes Vibrations And Load Fluctuations. Engineered To Provide A Comfortable Ride For Both Driver And Cargo, These Long-lasting Air Springs Ensure A Quiet And Balanced Driving Experience. We’re Committed To Keeping Trucks On The Road!
Specific Features
Expopartsplus Offers High-quality Raw Materials And Expert Manufacturing For Superior Performance.
Its Plastic Base Reduces Weight While Providing Cost Savings.
Designed With Oem-standard Dimensions, it Ensures Easy installation.
It is Highly Resistant To Oil, Lubricants, And Adverse Weather Conditions.
Engineered To Be Long-lasting And Environmentally Friendly.
Where Used
Mack / Volvo
| Specifications |
| Attribute |
Value |
| Applications |
Mack Volvo |
| Type |
Rolling Lobe |
| Brand |
Econoride |
| Firestone Bellows# |
1t15m-6 |
| Goodyear Bellows# |
566-24-1-010, 566-24-3-164 |
| Contitech Bellows# |
9 10s-17 |
| Load (lbs) @80 PsI |
6032 |
| Load (lbs) @100 PsI |
7540 |
| Natural Freq. (cpm) |
57 |
| Design Height (In) |
13 |
| Bottom Plate Type |
Plastic |
| Top Plate Hole/stud Qty |
2 |

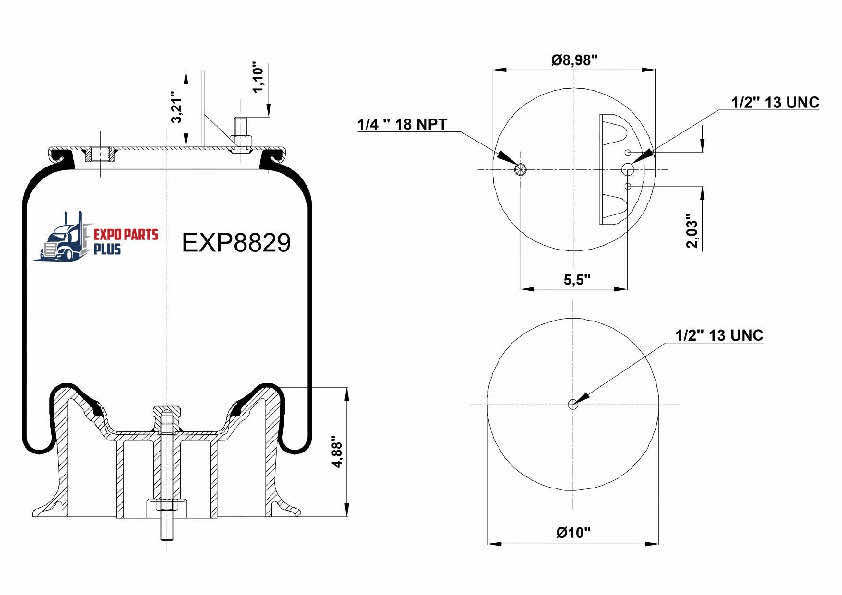

| Top Plate Dia. (a) |
9.00 |
| Top Plate C To C Dia. (b) |
5.50 |
| Bottom Plate Hole/stud Qty |
1 |
| Bottom Plate Dia. (c) |
10.00 |
| Bottom Plate C To C Dia. (d) |
N/a |
| Bottom Part # |
Bs14556 |
| Bumper |
No |
| Bracket |
Ab8829p |
| Min. Height |
6.9 |
| Max. Height |
23 |
| Max. Dia. |
12.6 |
| Serial Brand |
Serial No |
| No |
Series |
| Cross No |
Cross Brand |
| 8084296 |
Volvo |
| 8097092 |
Volvo |
| W01-358-8829 |
Firestone |
| 8079902 |
Volvo |
| 3934699 |
Volvo |
| 20505399 |
Volvo |
| 20413888 |
Volvo |
| 20396293 |
Volvo |
| 8829 |
Firestone |
| AS8829 |
Contitech |
| 74884 |
Contitech |
| 57QL54M |
Mack |
