Product Overview
Expopartsplus’ Premium Quality Air Spring is Designed To Maintain Vehicle Height Consistently. Manufactured To Meet Oem Standards, it Minimizes Vibrations And Load Fluctuations. Engineered To Provide A Comfortable Ride For Both Driver And Cargo, These Long-lasting Air Springs Ensure A Quiet And Balanced Driving Experience. We’re Committed To Keeping Trucks On The Road!
Specific Features
Expopartsplus Offers High-quality Raw Materials And Expert Manufacturing For Superior Performance.
Its Plastic Base Reduces Weight While Providing Cost Savings.
Designed With Oem-standard Dimensions, it Ensures Easy installation.
It is Highly Resistant To Oil, Lubricants, And Adverse Weather Conditions.
Engineered To Be Long-lasting And Environmentally Friendly.
Where Used
Hendrickson Trailer
| Specifications |
| Attribute |
Value |
| Applications |
Hendrickson Trailer |
| Type |
Rolling Lobe |
| Brand |
Expopartsplus |
| Firestone Bellows# |
1t17ca-5, 1t17b-5 |
| Contitech Bellows# |
11 10.5-15 |
| Triangle Bellows# |
6390 |
| Load (lbs) @80 PsI |
9040 |
| Load (lbs) @100 PsI |
11300 |
| Natural Freq. (cpm) |
84 |
| Design Height (In) |
10.00 |
| Bottom Plate Type |
Plastic |
| Top Plate Hole/stud Qty |
2 |

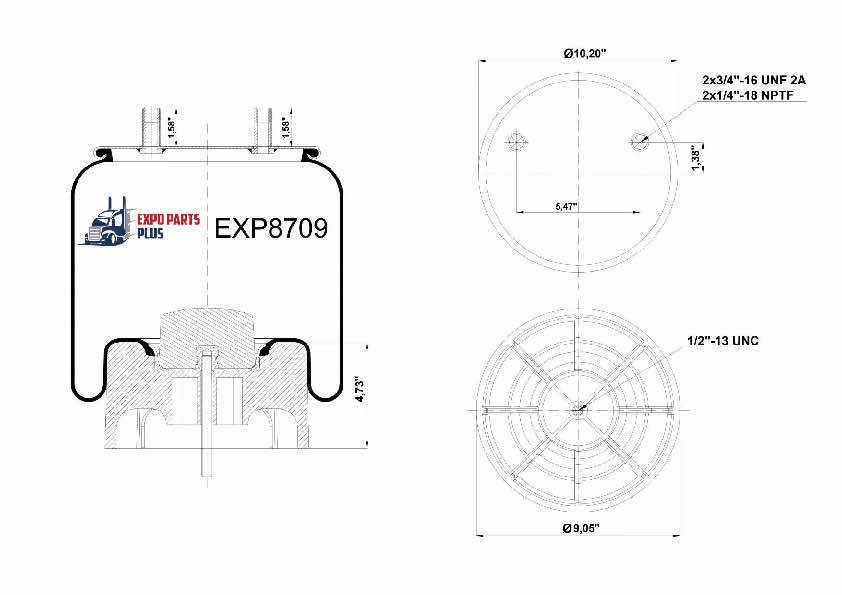

| Top Plate Dia. (a) |
10.20 |
| Top Plate C To C Dia. (b) |
5.50 |
| Bottom Plate Hole/stud Qty |
1 |
| Bottom Plate Dia. (c) |
9.17 |
| Bottom Plate C To C Dia. (d) |
N/a |
| Bottom Part # |
Bs10704 |
| Bumper |
Yes |
| Bracket |
N/a |
| Min. Height |
4.90 |
| Max. Height |
19.30 |
| Max. Dia. |
13.90 |
| Serial Brand |
Serial No |
| No |
Series |
| Cross No |
Cross Brand |
| G2298709200 |
Neway |
| 1R13-249 |
IHC |
| S21800 |
Hendrickson-Trailer |
| S20900 |
Hendrickson-Trailer |
| C21800 |
Hendrickson-Trailer |
| 1R13362 |
Goodyear |
| 1R13159 |
Goodyear |
| W01-358-8709 |
Firestone |
| 1R13262 |
Goodyear |
| 8709 |
Firestone |
| 64645 |
Contitech |
| 1010.5-15P460 |
Contitech |
